TY802

TY802

We are one of the Top largest manufacture for the chair bases, armrests, mechanism and other office chair parts in Anji Area, with sales turnover more than $15,000,000.

1.Good Chroming quality with BIFMA testing certificate

2.Good welding by Robots

3.Good packing to avoid the scratches during the transportation

4.Export to more than 50 countries with good reputation

点击查询

Detailed Product lnformation

ltem No:

TY802
Material:STEEL PLATE,2.5mm thickness
Surface finish:Sand Polishing
Color:Black powder coating

Net Weight:

5 KGS/PC
Packing Way:Plastic bag+Carton
Assembling hole position:153*200mm
Angle Ajustable:18°
Locking Positions:4 Locking position
Loading Ability (1*20GP):2080 PCS
MOQ:500 PCS
Payment Term:T/T or L/C  Sight
Pass BIFMA Testing or not:YES

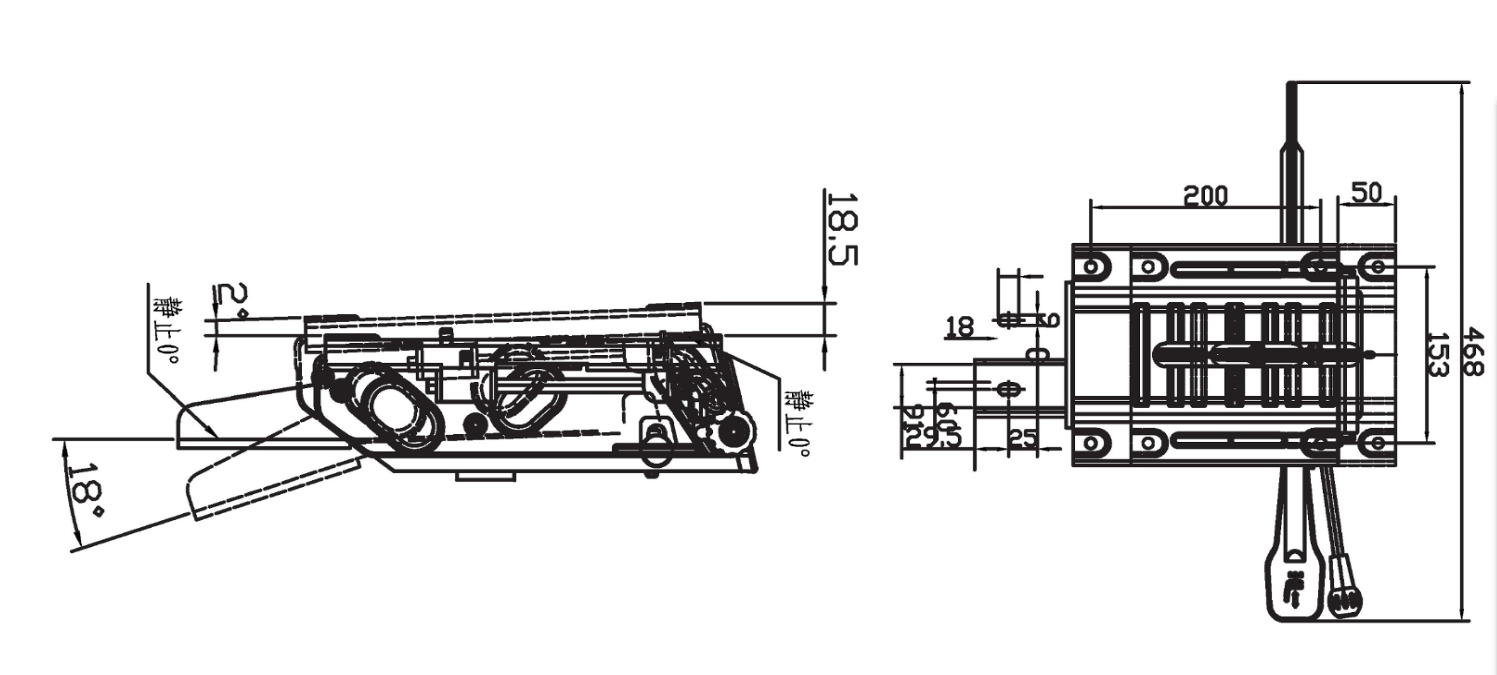

DRAWING.pngMECH801 DRAWING.jpg
